Zatka Machine Solar PCB & Buzzer PCB Combo, 12V | DIMOX

₹299.00
  • Solar Input: 12V DC
  • Battery Input: 12V DC
  • Output: 12V DC for Main PCB
  • Modes: Day Mode & Day/Night Mode
  • Battery Low Indicator: Available
  • Solar Charge Indicator: Available
  • Buzzer Control: Sensitivity Adjustable
  • CT Coil Input: Available
  • Easy to Use
Quantity

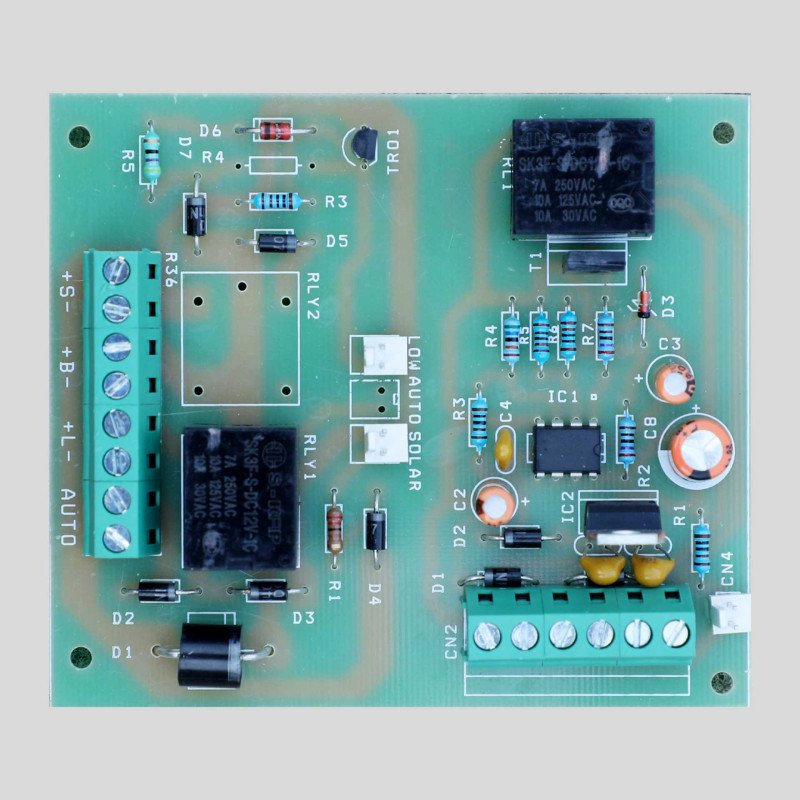

DIMOX Zatka Machine Solar PCB & Buzzer PCB Combo

DIMOX Zatka Machine Solar PCB & Buzzer PCB Combo is a 12V DC control PCB combination designed for solar-to-battery charging control and buzzer (siren) control in compatible Zatka Machine systems.

It supports both 12V DC solar input and 12V DC battery input, with a 12V DC output for Main PCB. The PCB supports Day Mode and Day/Night Mode.

Key Specifications

Product Solar PCB & Buzzer PCB Combo
Solar Input 12V DC
Battery Input 12V DC
Output 12V DC
Operating Modes Day Mode & Day/Night Mode

Main Functions

  • Solar Charging Control – Designed to manage the solar input for the compatible 12V system.
  • Battery Operation – Supports 12V DC battery input.
  • Day Mode – Supported operating mode.
  • Day/Night Mode – Supported operating mode.
  • Buzzer / Siren Control – Provides buzzer control functionality.

PCB Features

  • Battery Low Indicator Point
  • Solar Charge Indicator Point
  • CT Coil Input Point
  • Buzzer Output Point
  • Buzzer Sensitivity Variable (VR) Point
  • Day Mode & Day/Night Mode
  • Easy to Use
  • PCB Warranty: 7 Days

Suitable For

This Solar Zatka Machine PCB is designed for compatible Zatka Machine and solar fence energizer systems that require solar to battery charging operation and buzzer functionality.

PCB Wiring Diagram

Refer to the wiring diagram for PCB connection and installation.

📄 Download Diagram 2 – Main PCB With Solar PCB PDF

Important Not

  • CT Coil is not included.
  • Buzzer is not included.
  • This listing is for the Solar PCB + Buzzer (Siron) PCB Combo.
  • Check your existing Zatka Machine wiring and components for compatibility before installation.
DMX-SLR-BZR-PCB

Specific References

MPN
DMX-SLR-BZR-PCB
