Zatka Machine Main PCB - 12V Input, 8KV to 25KV Output | DIMOX
₹590.00
- Input: 12V DC, 1A
- Supported Transformer: 8KV, 10KV, 12KV, 15KV, 18KV, 25KV
- Output: 8KV to 25KV, Depending on Compatible Transformer
- Power Modes: Full Power & Half Power
- Power Adjustment: Adjustable Power Control Point VR
- Application: Zatka Machine

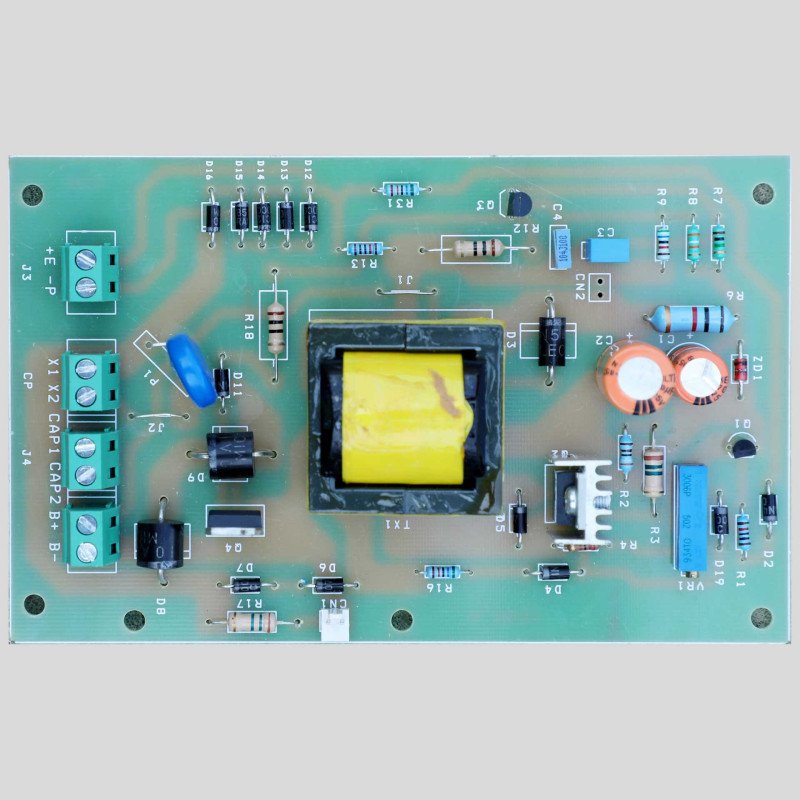

DIMOX Zatka Machine Main PCB
DIMOX Zatka Machine Main PCB is a 12V DC main control PCB designed for Zatka Machine applications. It supports compatible transformers from 8KV to 25KV, allowing different output configurations depending on the transformer and overall setup.
Key Specifications
| Product | DIMOX Zatka Machine Main PCB (Motherboard) |
| Input Voltage | 12V DC |
| Input Current | 1A |
| Supported Transformer | 8KV, 10KV, 12KV, 15KV, 18KV, 25KV |
| Output | 8KV to 25KV, Depending on Compatible Transformer and setup |
| Power Modes | Full Power & Half Power |
| Application | Zatka Machine |
Two Power Modes
The PCB provides a power adjustment system that allows the Zatka Machine to operate in two power modes:
- Full Power Mode – for full max power operation.
- Half Power Mode – for reduced half power operation.
The Power Variable Adjustable Point is used for this power adjustment, allowing you to select the required power mode.
PCB Features
- Pulse generation LED indicator point
- Full Power / Half Power selection point
- Power Variable Adjustable VR Point
- Supports compatible: 8KV, 10KV, 12KV, 15KV, 18KV, 25KV Transformers
- Supports compatible: 15MFD & 20MFD 440V Capacitor
- PCB wiring diagrams available on Website
- PCB Warranty: 7 Days
PCB Wiring Diagrams
Refer to the wiring diagrams for PCB connection and installation.
📄 Download Diagram 1 – Main PCB PDF
Important Note
This product includes the Zatka Machin Main PCB Only.
- Transformer is not included.
- Capacitor is not included.
Before installation, ensure that the transformer, capacitor and other connected components are compatible with the PCB specifications. Proper wiring and grounding are important for safe and reliable operation.
DMX-MAIN-PCB-12V
Specific References
- MPN
- DMX-MAIN-PCB-12V
